Hand Held Drill Motor: HH1531

Hand Held Drill Motor: HH1531

Hand Held Bit Capacity: 60 mm (2.3")

Applications and Features

  • Compact three-speed gear box with high, medium, and low speed.
  • Weigh Only 6.9 Kg (15 lbs).
  • D-style handle for ergonomic control.
  • Multi-position front handle.
  • Built-in on/off switch with motor overload protection.
  • Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage.
  • Tool kit including a wrench.
  • Optional spindle adaptor available.
Hand Held Drill Motor: HH1531
Variable speed trigger for hand held use
Hand Held Drill Motor: HH1531

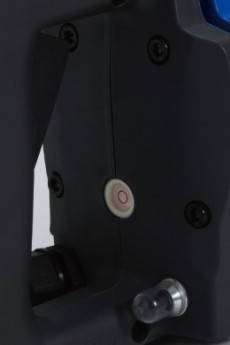

Two Spirit Levels
Hand Held Drill Motor: HH1531
Switches for rig mounted mode
Hand Held Drill Motor: HH1531
Carry case and tools included

Specifications

Rated Input 1,600 W
Voltage AC 110-120 V・220-240 V, 50/60 Hz
Speed 3
Spindle Revolutions at No Load 900/2,100/4,150 rpm (110-120V)・1,000/2,500/4,900 rpm (220-240V)
Spindle Revolutions at Rated Load 720/1,800/3,600 rpm (110-120V)・730/1,800/3,600 rpm (220-240V)
Recommended Core Bit Diameter in Handheld Mode 12 to 60 mm (0.47” to 2.3")
Recommended Core Bit Diameter inRig Mounted Mode 12 to 180 mm (0.47” to 7”)
Spindle Thread G1/2” (BSPP1/2”)
Weight excl. Power Plug and Cord 6.9 kg (15 lbs)

Specifications and product appearances are subject to change without prior notice.　
