Stand: TS-095 Motor: H1011/H1012

Stand: TS-095 Motor: H1011/H1012

Maximum Bit Capacity: 120 mm ( 4")

Applications and Features

  • Compact and light yet powerful 1,600 W machine for limited space jobs.
  • Multi-position water swivel inlet for convenience.
  • Right and left hand feed handle positions.
  • Built-in on/off switch with motor overload protection.
  • Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage. (220-240 V only)
  • Two motor available: H1011 (Normal)/H1012 (for small diameter with higher rev).
  • Angle drill stand (45 degree backward) as standard accessory.
  • Normal Stand Column: 805 mm (31″) with 558 mm(22″) stroke.
  • Case version Stand Column: 568 mm (22″) with 320mm (12″) stroke.
  • 40 mm (1-5/8″) square column.
  • Includes a water collector ring.
  • Tool kit including wrenches, allen keys, and core removal wedge lasso.
  • Optional spindle adaptor available.
Stand: TS-095 Motor: H1011/H1012

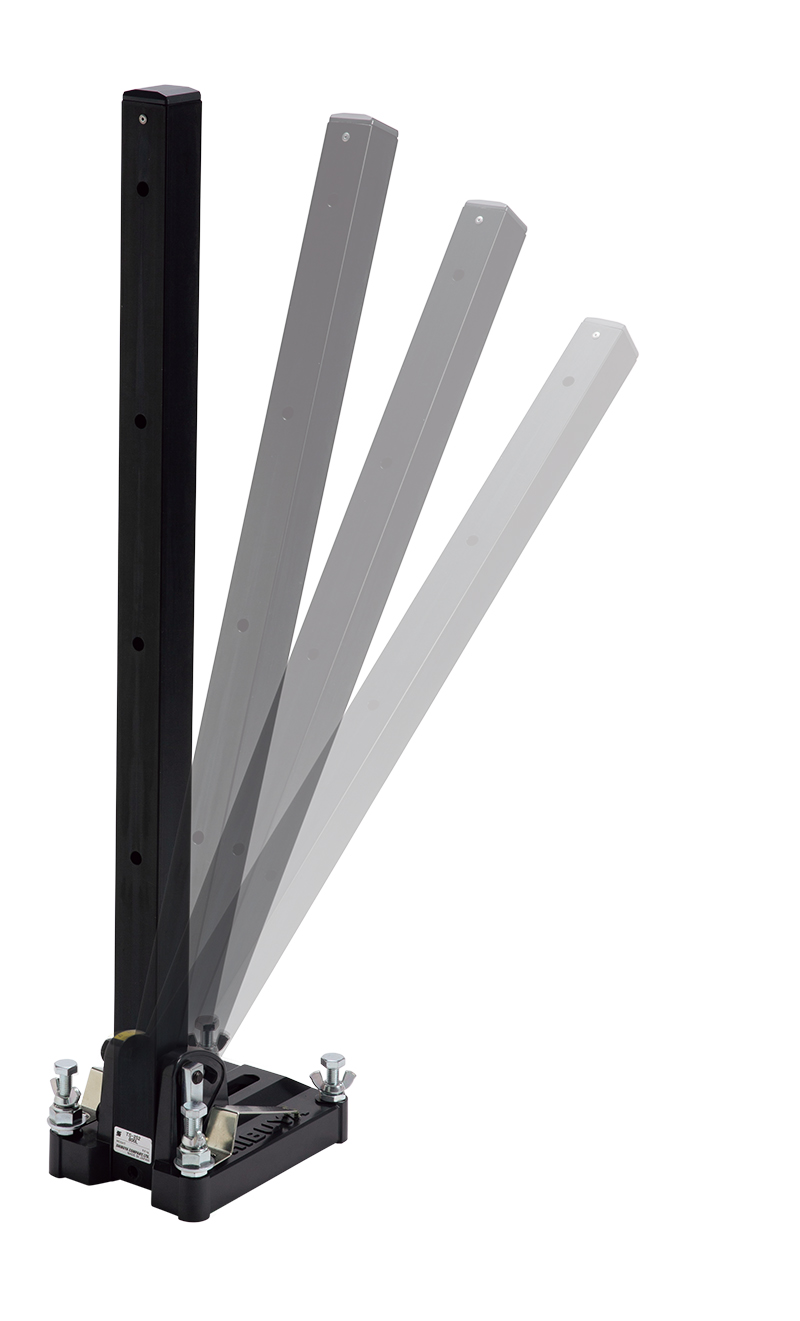

Standard AB42 swivel base
Stand: TS-095 Motor: H1011/H1012

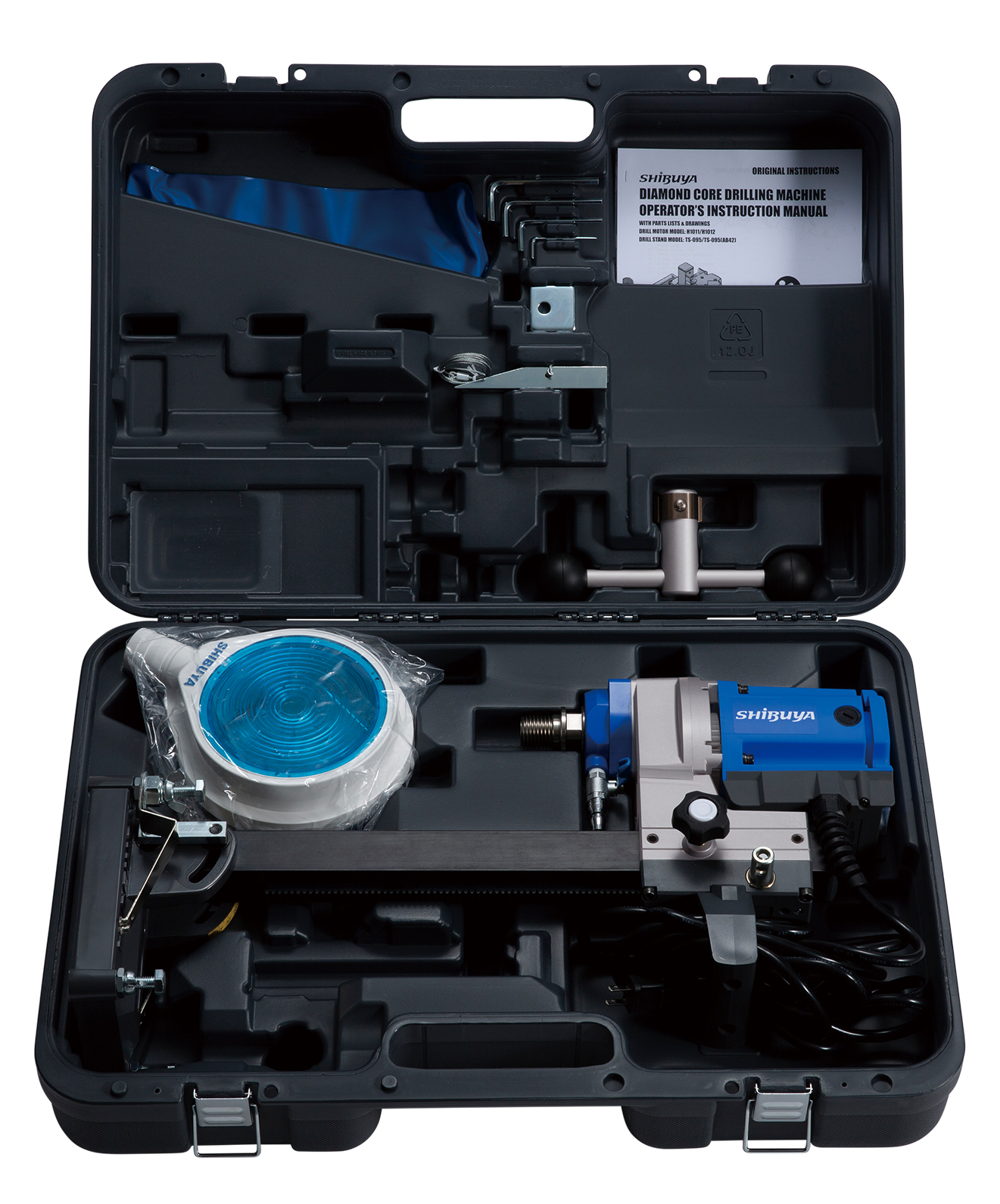

Carry case version

Specifications

Rated Input1,600 W
VoltageAC 110-120 V・220-240 V, 50/60 Hz
Speed1
Spindle Revolutions at No Load1,050 rpm (H1011 110-120V)・1,100 rpm (H1011 220-240V)・1,900 rpm (H1012 110-120V)・2,000 rpm (H1012 220-240V)
Spindle Revolutions at Rated Load760 rpm (H1011 110-120V)・740 rpm (H1011 220-240V)・1,350 rpm (H1012 110-120V)・1,310 rpm (H1012 220-240V)
Spindle ThreadG1/2” (BSPP1/2”)・A-Rod
Weight9.6 kg (21.2lbs)・8.9 kg (19.6 lbs) (Case)
Height805 mm・568 mm (Case)
Base Size146 x 200 mm
Available Stroke558 mm・320 mm (Case)

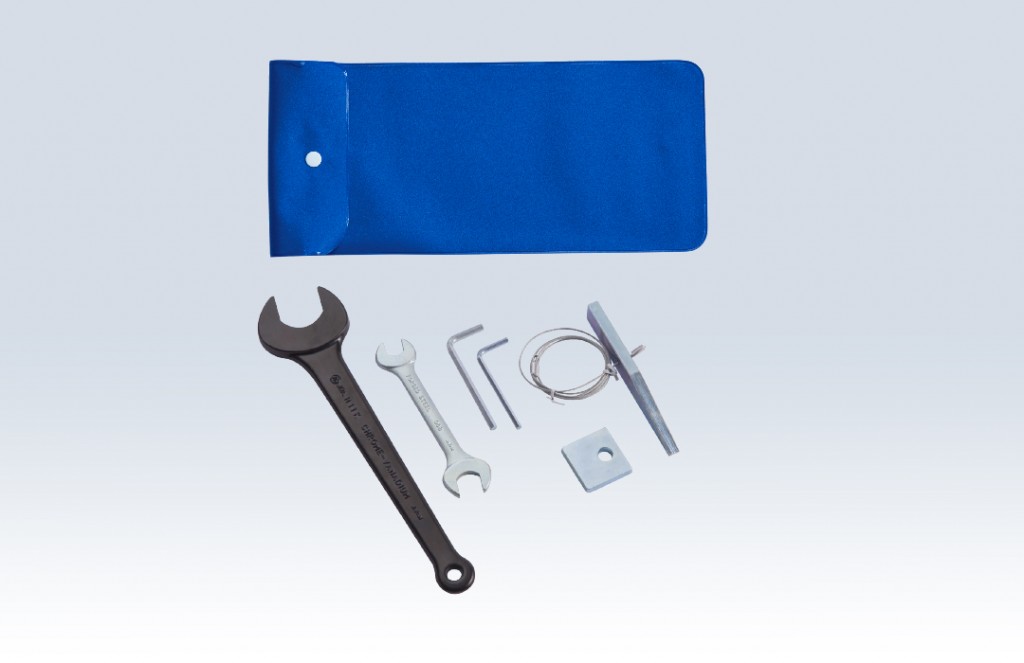

standardtoolkit

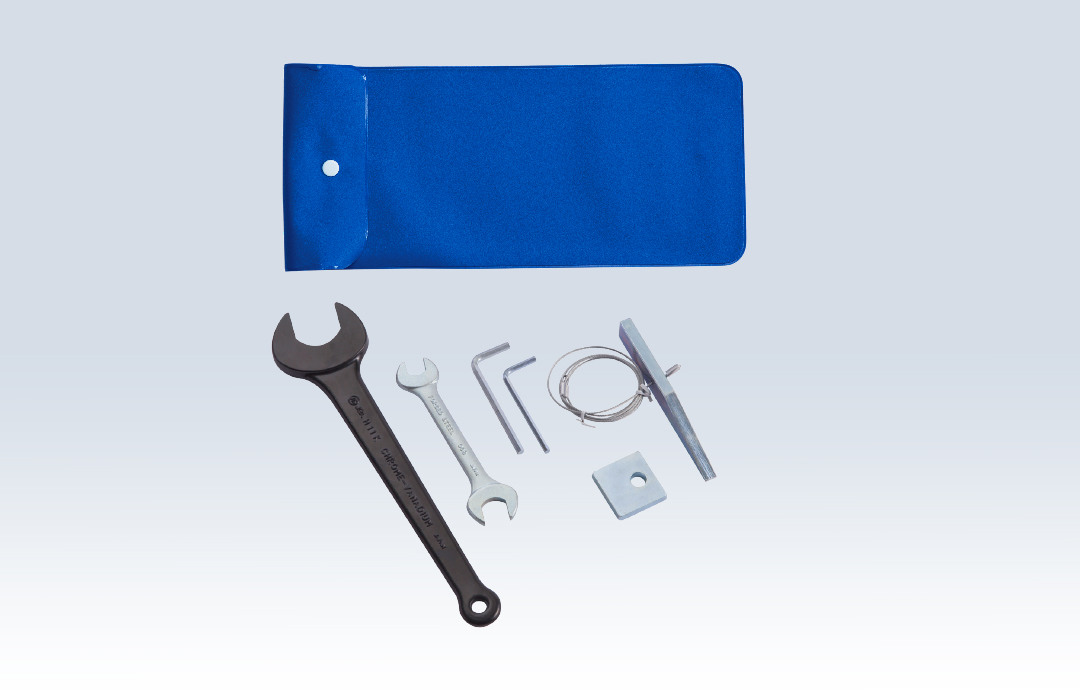

095tool
  • Allen Key 4 and 5 mm
  • Double-End Spanner 13 x 17 mm
  • Single-End Spanner 32 and/or 36 mm
  • Core Removal Wedge Lasso
  • 3/8″ Square Washer
  • Spindle Adaptor (Option)

Specifications and product appearances are subject to change without prior notice.

The diamond core bit in the picture is not included in the item.
