Maximum Bit Capacity: 600 mm (24") with 130 mm Spacer

Applications and Features

  • Ideal machine for large diameter core drilling jobs.
  • Multi-position water swivel inlet for convenience.
  • Right and left hand feed handle positions.
  • Built-in on/off switch with motor overload protection.
  • Portable Residual Current Device (P.R.C.D.)automatically shuts off electricity in the event of electric leakage. (220-240 V only)
  • Normal Stand Column: 1106mm (43″) with 634 mm (25″) stroke.
  • 73 mm (2-7/8″) square column.
  • Positive carriage lock.
  • Tool kit including wrenches and allen keys.

Note this movie is just for reference only.
The models used in this movie are TS-403/R2231 (220-240V), rated input 2,800W and TS-405/H2231 (220-240V), rated input 3,450W.
The comparison between TS-603/R2531 (220-240V), rated input 2,800W and TS-605/H2531 (220-240V), rated input 3,450W nor
TS-603/R2531 (110-120V), rated input 3,100W and TS-605/H2531 (110V or 110-120V), rated input 2,750W or 3,450W will not provide the same outcome.
Stand: TS-605 Motor: H2531
1:1 direct gear & 1:2.4 reduction gear shaft
Stand: TS-605 Motor: H2531

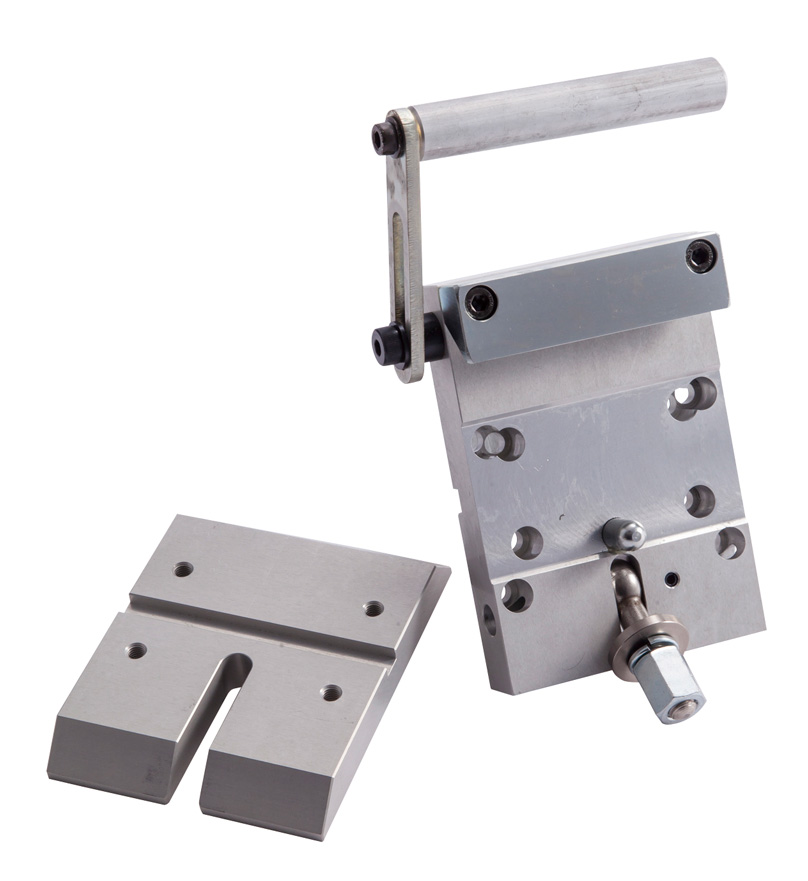

Quick release spacer (standard accessory) enables easy mounting/dismounting of the motor.

Specifications

Rated Input2,750 W (110 V)・ 3,450 W (110-120 V and 220-240 V)
VoltageAC 110 V・110-120 V・220-240 V, 50/60 Hz
Speed3
Spindle Revolutions at No Load150 / 300 / 600 rpm (110-120 V)・175 / 350 / 700 rpm (220-240 V)
Spindle Revolutions at Rated Load100 / 200 / 400 rpm (110-120 V)・105 / 210 / 420 rpm (220-240 V)
Spindle ThreadUNC 1 -1/4"・A-Rod
WeightH2531 motor: 20.6 kg・TS-605 w carriage block: 42.9 kg
Height1106 mm
Base Size230 x 400 mm
Available Stroke634 mm

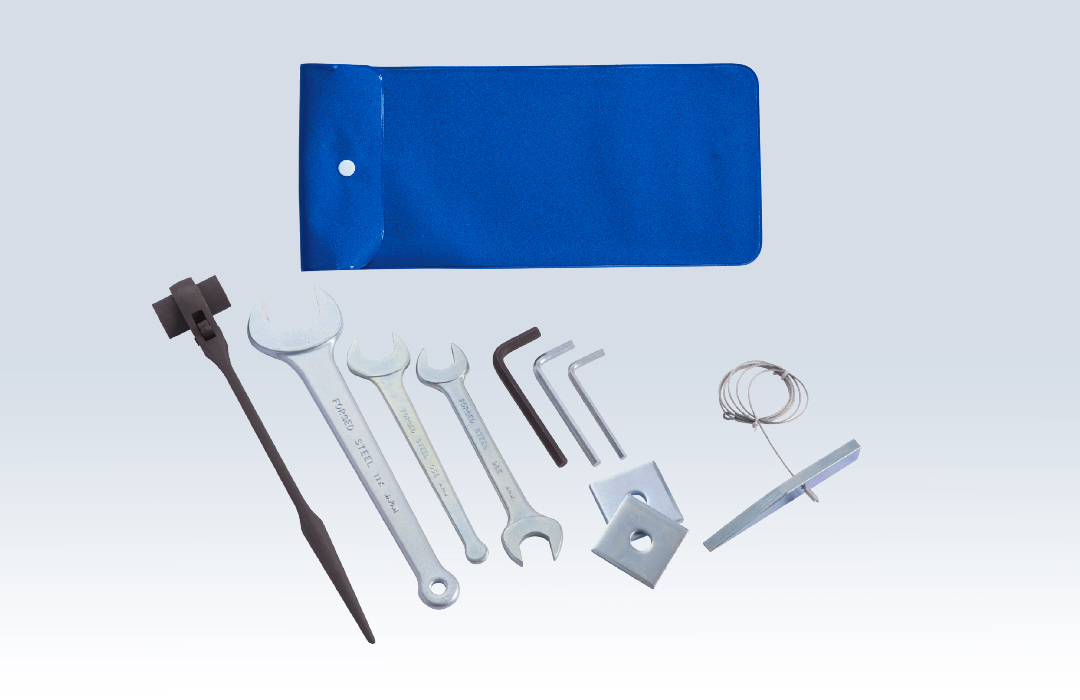

standardtoolkit

605tool

  • Allen Key 5, 6, 8 mm
  • Ratchet Wrench 19 x 21 mm
  • Double-End Spanner 19 x 21 mm
  • Single-End Spanner 24, 36 mm
  • Core Removal Wedge Lasso
  • W1/2″ Square Washer



Specifications and product appearances are subject to change without prior notice.
