Stand: TS-405 Motor: H2221 A-Rod Only

Stand: TS-405 Motor: H2221 A-Rod Only

Maximum Bit Capacity: 400 mm (16") with 30 mm Spacer

Applications and Features

  • Ideal machine for middle to large size jobs.
  • Multi-position water swivel inlet for convenience.
  • Right and left hand feed handle positions.
  • Built-in on/off switch with motor overload protection.
  • Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage. (220-240 V only)
  • Normal Stand Column: 1003 mm (39″) with 633 mm (25″) stroke.

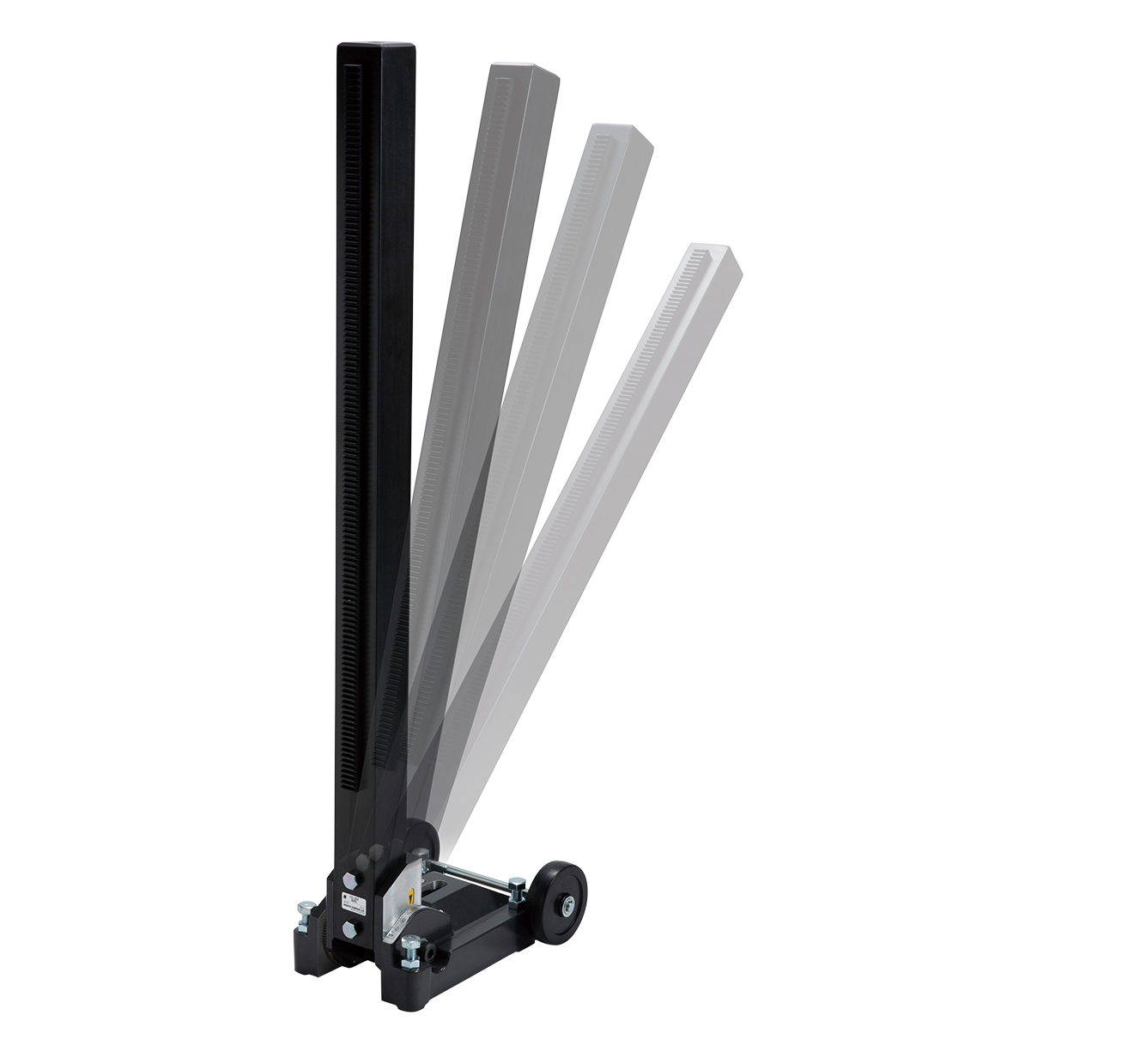

  • AB61 Column: 1060 mm (41″) with 655 mm (26″) stroke.
  • 60 mm (2-3/8″) square column.
  • Tool kit including wrenches and allen keys.

The models used in the movie are TS-403/R2231 (220-240V), rated input 2,800W and TS-405/H2231 (220-240V), rated input 3,450W.
The comparison between TS-402/R2221 (220-240V), rated input 2,800W and TS-405/H2221 (220-240V), rated input 3,450W nor
TS-402/R2221 (110-120V), rated input 3,100W and TS-405/H2221 (120V), rated input 3,240W will not provide the same outcome.
Stand: TS-405 Motor: H2221 A-Rod Only

Specifications

Rated Input 3,240 W (120 V)・3,450 W (220-240 V)
Voltage AC 120 V・220-240 V, 50/60 Hz
Speed 2
Spindle Revolutions at No Load 300 / 700 rpm (120 V)・350 / 850 rpm (220-240 V)
Spindle Revolutions at Rated Load 230 / 550 rpm (120 V)・190 / 460 rpm (220-240 V)
Spindle Thread A-Rod Only
Weight H2221 w carriage block: 16.9 kg ・TS-405: 14.8 kg
Height 1003 mm・1060 mm (AB61)
Base Size 176 x 275 mm・186 x 250 mm (AB61)
Available Stroke 633 mm・655 mm (AB61)

standardtoolkit

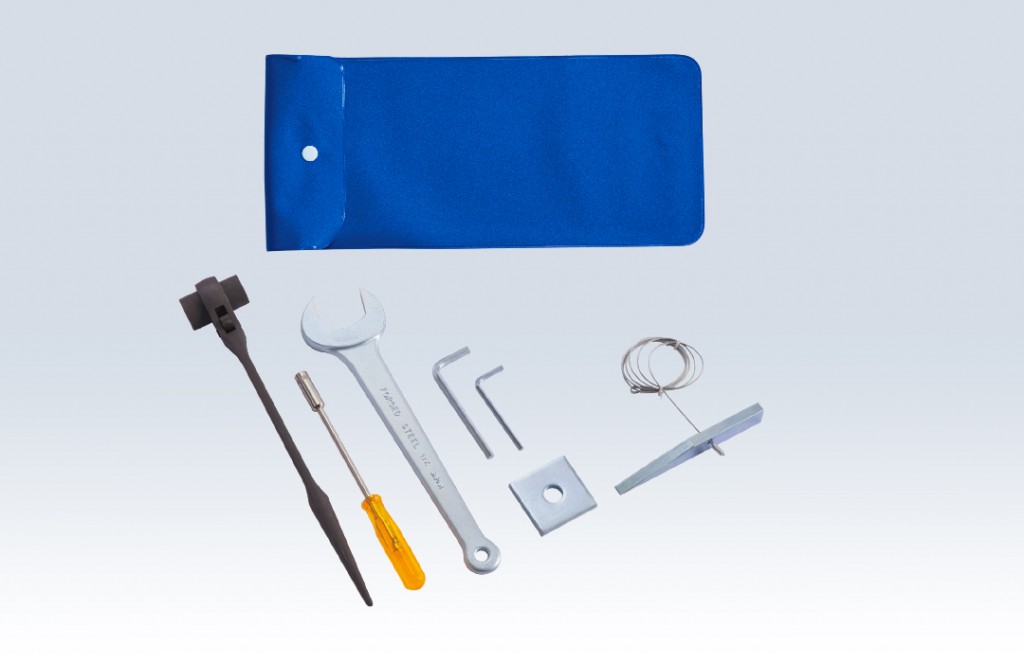

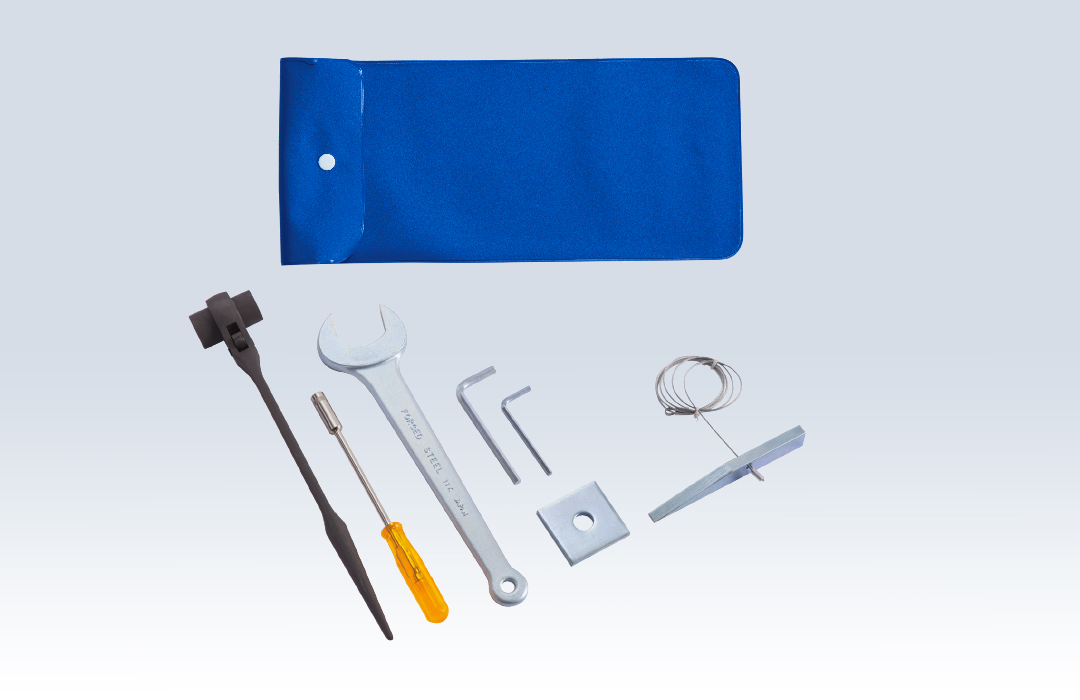

TS-405

405tool
  • Allen Key 4 and 6 mm
  • Ratchet Wrench 19 x21 mm
  • Single-End Spanner 36 mm
  • Nut Driver 7 mm
  • Core Removal Wedge Lasso
  • W1/2″ Square Washer

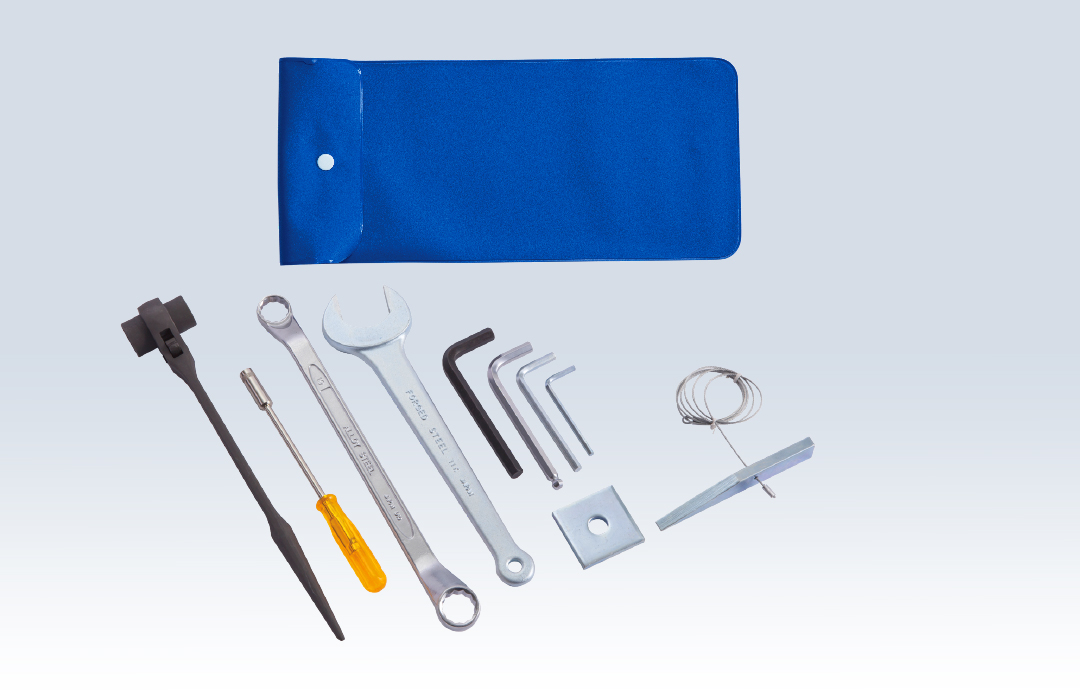

TS-405(AB61)

405ABtool
  • Allen Key 4, 6, 8, 10 mm
  • Ratchet Wrench 19 x 21mm
  • Ring Wrench 19 x 21mm
  • Single-End Spanner 36 mm
  • Nut Driver 7 mm
  • Core Removal Wedge Lasso
  • W1/2″ Square Washer

Specifications and product appearances are subject to change without prior notice.　

The diamond core bit in the picture is not included in the item.　
