Stand: TS-165 Motor: HH1531

Stand: TS-165 Motor: HH1531

Rig Mounted Bit Capacity: 180 mm (7")

Applications and Features

  • Ideal machine for the professionals who need both hand held core drill and rig mounted core drill.
  • Compact three-speed gear box with high, medium, and low speeds.
  • Built-in on/off switch with motor overload protection.
  • Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage.
  • Normal Stand Column: 803 mm (31″) with 545 mm (21″) stroke.
  • AB52 Column: 1011 mm (40″) with 715 mm (28″) stroke.
  • 50 mm (2″) square column.
  • Right and left hand feed handle positions.
  • 2 way mounting methods: 30 mm Bolt-on Spacer/Clamp Ring Spacer
  • Tool kit including wrenches and allen keys.
  • Optional spindle adaptor available.
Stand: TS-165 Motor: HH1531

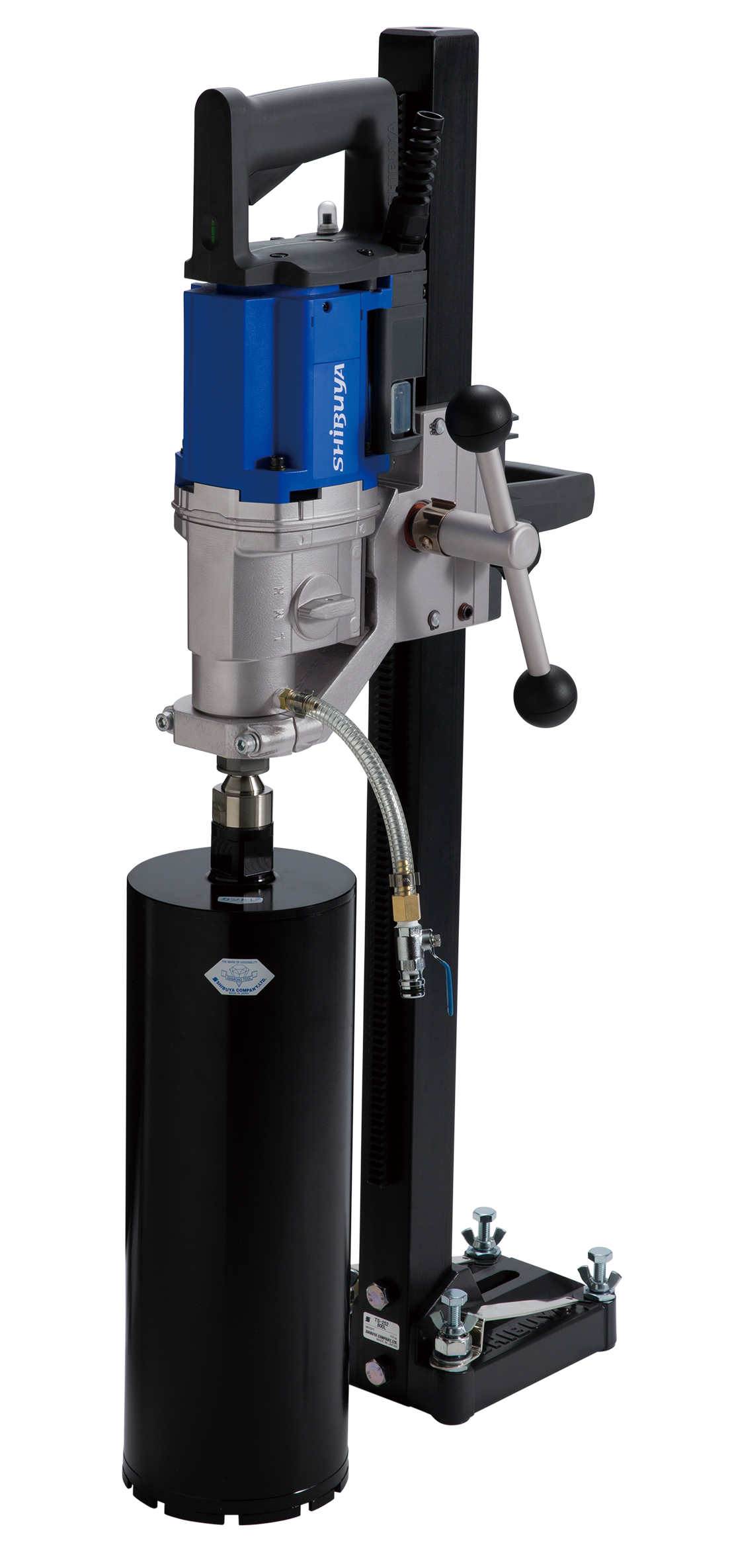

Fixed Drill Stand, Column Length 800 mm with Clamp Ring Spacer

Specifications

Rated Input1,600 W
VoltageAC 110-120 V ・220-240 V, 50/60 Hz
Speed3
Spindle Revolutions at No Load900/2,100/4,150 rpm (110-120V)・1,000/2,500/4,900 rpm (220-240V)
Spindle Revolutions at Rated Load720/1,800/3,600 rpm (110-120V)・730/1,800/3,600 rpm (220-240V)
Recommended Core Bit Diameter in Handheld Mode12 to 60 mm (0.47” to 2.3")
Recommended Core Bit Diameter inRig Mounted Mode12 to 180 mm (0.47” to 7”)
Spindle ThreadG1/2” (BSPP1/2”)
WeightHH1531 motor: 6.9 kg・TS-165: 8 or 8.5 kg・TS-165(AB52): 10.3 or 10.8 kg
Height803 mm・1011 mm (AB52)
Base Size146 x 205 mm
Available Stroke545 mm/・715 mm (AB52)

Specifications and product appearances are subject to change without prior notice.

The diamond core bit in the picture is not included in the item.
