Maximum Bit Capacity: 180 mm ( 7")

Applications and Features

  • Ideal machine for small-middle size jobs.
  • Multi-position water swivel inlet for convenience.
  • Right and left hand feed handle positions.
  • Two speed motor.
  • Built-in on/off switch with motor overload protection.
  • Two motor available: H1521 (Normal) / H1522 (for small diameter with higher rev).
  • Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage. (220-240 V only)
  • Includes a water collector ring.
  • Normal Stand Column: 803 mm (31″) with 545 mm(21″) stroke.
  • AB52 Column: 1011 mm (40″) with 715 mm (28″) stroke.
  • Case Version Column: 793 mm (31″) with 497 or 535 mm (20″ or 21″) stroke. (extension 200 mm column in use)
  • 50 mm (2″) square column.
  • Tool kit including wrenches and allen keys.
Stand: TS-165 Motor: H1521/H1522
AB52 swivel base available as option
Stand: TS-165 Motor: H1521/H1522

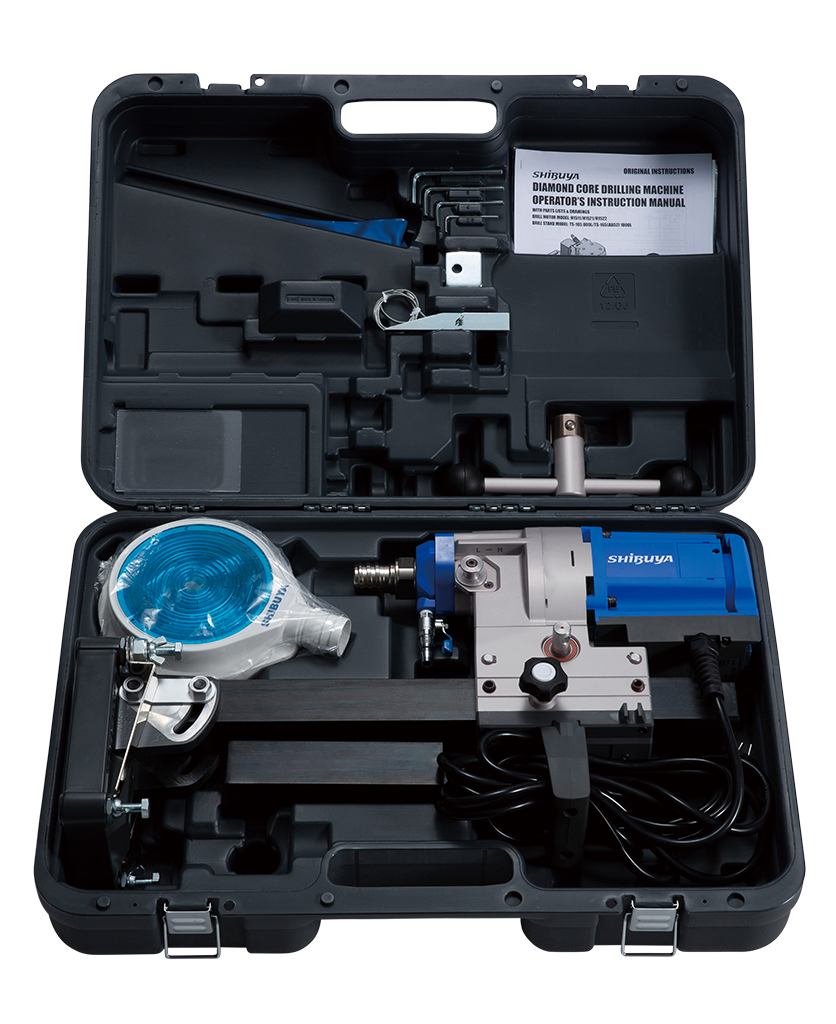

Carry case available as option

Specifications

Rated Input 1,900 W (100V)・1,700 W (110-120V)・2,100 W (220-240V)
Voltage AC 100V・110-120V・220-240V, 50/60 Hz
Speed 2
Spindle Revolutions at No Load 700/1,000 rpm (H1521 100V)・750/1,150 rpm (H1521 110-120V)・850/1,300 rpm (H1521 220-240V)・850/1,750 rpm (H1522 220-240V)
Spindle Revolutions at Rated Load 490/690 rpm (H1521 100V)・520/790 rpm (H1521 110-120V)・470/710 rpm (H1521 220-240V)・470/970 rpm (H1522 220-240V)
Spindle Thread UNC 1-1/4"・A-Rod
Weight H1521 w carriage block: 9.4 kg・TS-165(800L): 5.2 kg・TS-165(AB52)(1000L): 7.5 kg・TS-165(Case Ver.): 6.8 kg・TS-165(AB52 Case Ver.): 7.3 kg
Height 803 mm・1011 mm (AB52)・793 mm (Case Ver.)
Base Size 146 x 205 mm
Available Stroke 545 mm・715 mm (AB52)・535 mm (Case Ver.)・497 (AB52 Case Ver.)

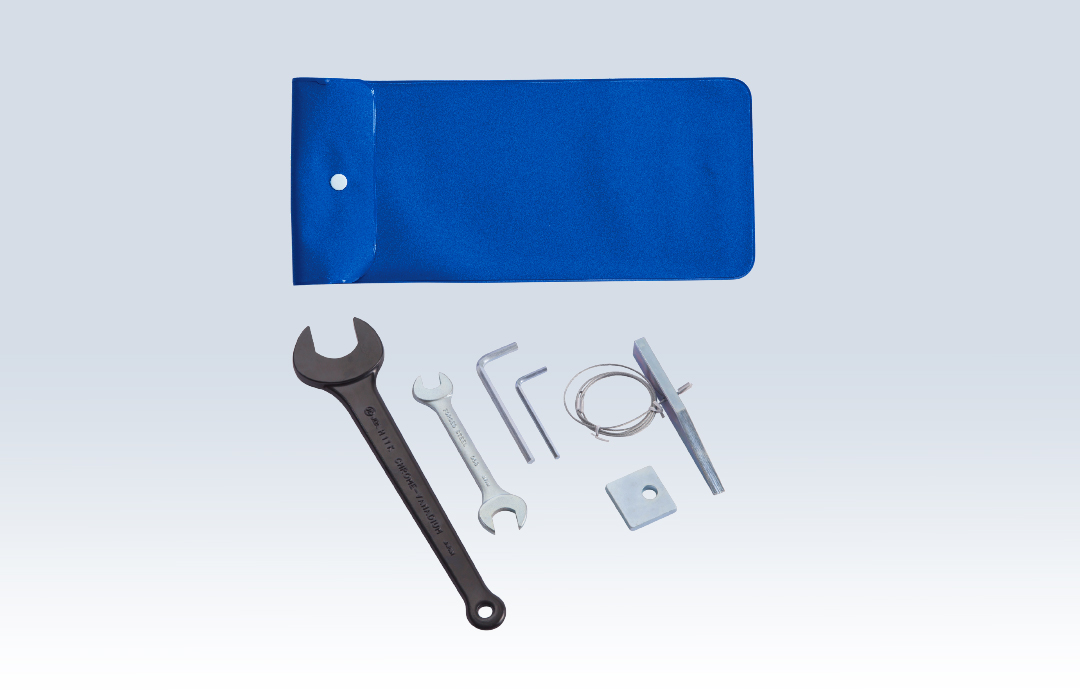

standardtoolkit

165tool

  • Allen Key 4 and 6 mm
  • Double-End Spanner 17 x 19 mm (AB52) or 13 x 17 mm
  • Single-End Spanner 32 mm or 36mm
  • Core Removal Wedge Lasso
  • 3/8″ Square Washer

Specifications and product appearances are subject to change without prior notice.

The diamond core bit in the picture is not included in the item.
